< Back

4146038

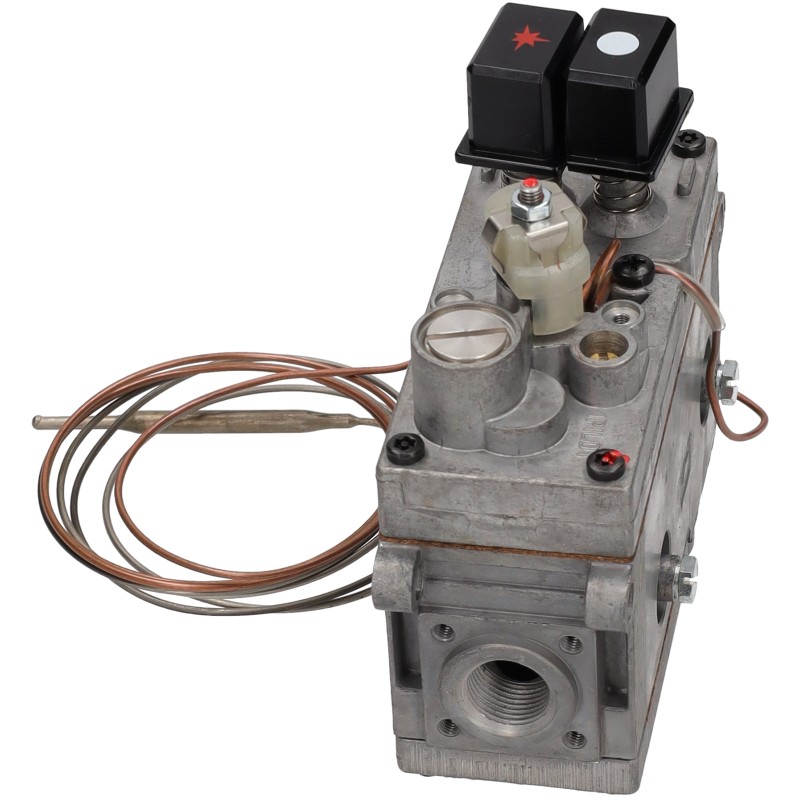

VALVE MINISIT 100-340


-
+

Recommended by S&P

Download technical sheet

Product components

1129146

SENSITIVE ELEMENT 1750mm 100-340?C


-
+

Recommended by S&P

2101053

O-RING X MINISIT


-
+

Recommended by S&P

1125024

MINISIT JUNCTION 1/2


-
+

Recommended by S&P

3108001

MINISIT HANDLE WITH ADJUSTMENT


-
+

Recommended by S&P

1125021

ELBOW JUNCTION MINISIT 3/8


-
+

Recommended by S&P

4146008

MAGNET SET AC/2 MINISIT


-
+

Recommended by S&P

1125159

OIL SEAL FITTING


-
+

Recommended by S&P


-
+

Recommended by S&P

1132001

COVER WITH PIEZO ELECTRIC LIGHTER SIT


-
+

Recommended by S&P

1132007

COVER MINISIT


-
+

Recommended by S&P

Contenuto in

1125021

ELBOW JUNCTION MINISIT 3/8


-
+

Recommended by S&P

1125024

MINISIT JUNCTION 1/2


-
+

Recommended by S&P

1132007

COVER MINISIT


-
+

Recommended by S&P

Details

ELECTROLUX PROFESSIONAL S.P.A.
MBM- EUROTEC SRL -
BARON ALI GROUP SRL A SOCIO UNICO
GAS THREAD GAS= inlet ø 1/2F-outlet ø 3/8F
THREAD MA THERMOCOUPLE=9X1
PRESSURE BAR MAX BAR MAX=50mbar
MINIMUM TEMPERATURE ° T°MIN=100°
MAXIMUM TEMPERATURE ° T°MAX=340°
WIRE mm WIRE=1800mm
PROBE DIAMETER MM D=5mm
PROBE LENGHT MM L=70mm
RANGE OF WORK RANGE=100-340
GASKET 2101053
TYPE 0710
SENSING ELEMENT Z=1129146
KNOB X=3108001
MAGNETIC UNIT Y=4146008
